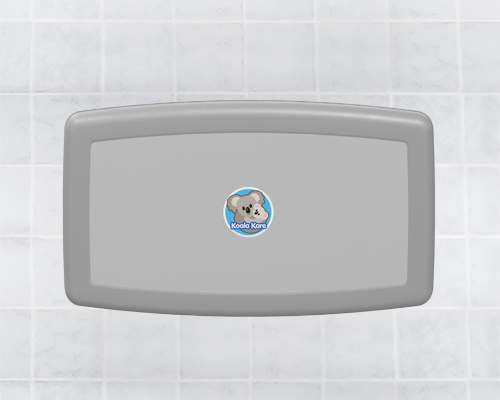

KB300 Horizontal Surface-Mounted
Surface-mounted horizontal baby changing station is constructed of polypropylene and features a unibody steel chassis for superior strength. Available in three stunning colors with each providing a modern visual aesthetic. Thoughtful patron amenities enhance the end-user experience, and include Microban® product protection, a redesigned liner dispenser, a convenient external solid stainless steel rod bag hook with satin finish and the Koala brand mark that communicates comfort to families and the promise of a thoughtful accommodation.

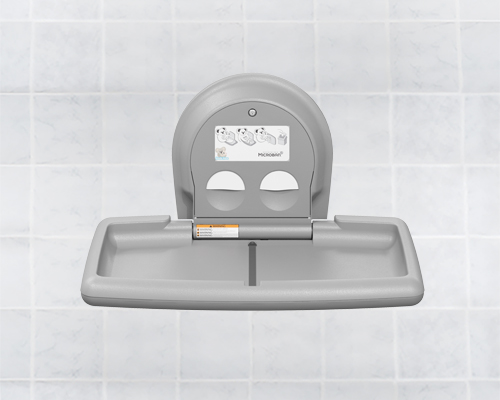

The dual liner cavity has an internal spring tab that pushes liners forward while only allowing single liner dispensing. Each cavity holds 25 liners and locking mechanism minimizes operator refills and discourages potential vandalism. The product includes child protection straps. The external stainless steel bag hook is for safely storing a diaper bag off the floor and keeping the diaper bag in close proximity to the caregiver for ease of use. Bed surface exclusively contains Microban® antimicrobial product protection that reduces odor-causing bacteria and keeps the bed surface cleaner between cleanings. Concealed pneumatic cylinder provides controlled, slow opening and closing of the changing station bed.

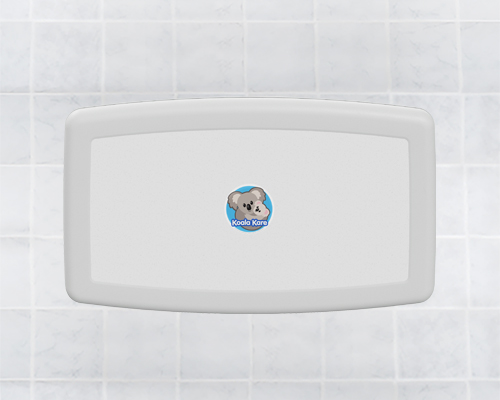

White Granite 05
This Baby Changing Station has been tested to support 200 lbs with minimal deflection.
Please note: This product is designed for infants only, up to 3.5 years of age and weighing less than 50 lbs.
ASTM and EN compliant. Meets ADA requirements when mounted properly.
US Patent Nos. 8365328, 8276229, D605886, D601843
Canadian Patent No. 130179
European Community 1114367-0001, 1114367-0002
Australia Patent No. 325470
China Patent No. ZL200930004164.1
Taiwan Patent No. D136662
Unit Dimensions: 35 15/16″ W x 20 ¾” H (897 mm x 527.5 mm)
Depth (closed): 4″ (101.6 mm)
Extension (open): 21 3/16″ (539 mm)
Shipping Weight: 33 lbs.
ADA Compliance Information
KB301 Baby Changing Stations have been designed to meet the applicable provisions of the 2010 ADA Standards (ADAS) and the 2009/2017 International Code Council (ICC) A117.1 Standards when properly installed and maintained. To comply with these accessibility requirements the unit must be installed in a compliant location and height in accordance with the installation instructions.
For more information, download the Accessibility Compliance Guide.
