KB310-SSRE Horizontal Stainless Steel Recessed-Mounted

Recessed-mounted horizontal baby changing station features one-piece, deep-drawn, uniform grain stainless steel components eliminate seams, sharp edges and weld lines, and provide a modern visual aesthetic. Thoughtful patron amenities enhance the end-user experience, and include Microban® product protection, laser etched logo, a redesigned liner dispenser and a convenient stainless steel bag hook for safely storing a diaper bag off the floor.

The dual liner cavity has an internal spring tab that pushes liners forward while only allowing single liner dispensing. Each cavity holds 25 liners and locking mechanism minimizes operator refills and discourages potential vandalism. The product includes child protection straps and bag hooks. Bed surface exclusively contains Microban® antimicrobial, reducing odor causing bacteria.

white-arrow-down

Technical Specifications

This Baby Changing Station has been tested to support 200 lbs with minimal deflection.

Please note: This product is designed for infants only, up to 3.5 years of age and weighing less than 50 lbs.

ASTM and EN compliant. Meets ADA and Texas Accessibility Standard (TAS) requirements when mounted properly.

US Patent Nos. 8365328, 8276229, D605886, D601843

Canadian Patent No. 130179

European Community 1114367-0001, 1114367-0002

Australia Patent No. 325470

China Patent No. ZL200930004164.1

Taiwan Patent No. D136662

Unit Dimensions: 41 5/16” W x 26 7/32″ H (1050 mm x 666 mm)

Depth (closed): 2 23/32” (69 mm)

Extension (open): 17 13/32”(442 mm)

Shipping Weight: 80 lbs

white-arrow-down

ADA Compliance Information

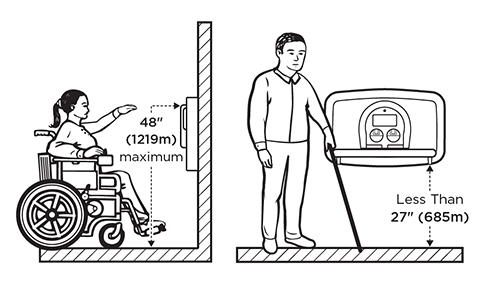

KB310 Baby Changing Stations have been designed to meet the applicable provisions of the 2010 ADA Standards (ADAS) and the 2009/2017 International Code Council (ICC) A117.1 Standards when properly installed and maintained. The KB310 meets the 2012 Texas Accessibility Standard (TAS). To comply with these accessibility requirements the unit must be installed in a compliant location and height in accordance with the installation instructions.

For more information, download the Accessibility Compliance Guide.
