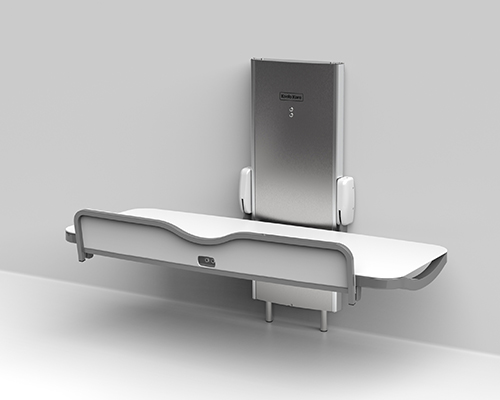

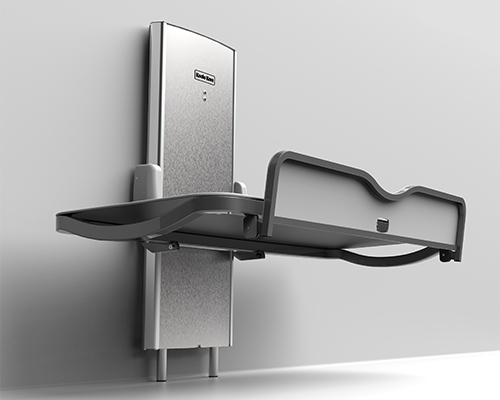

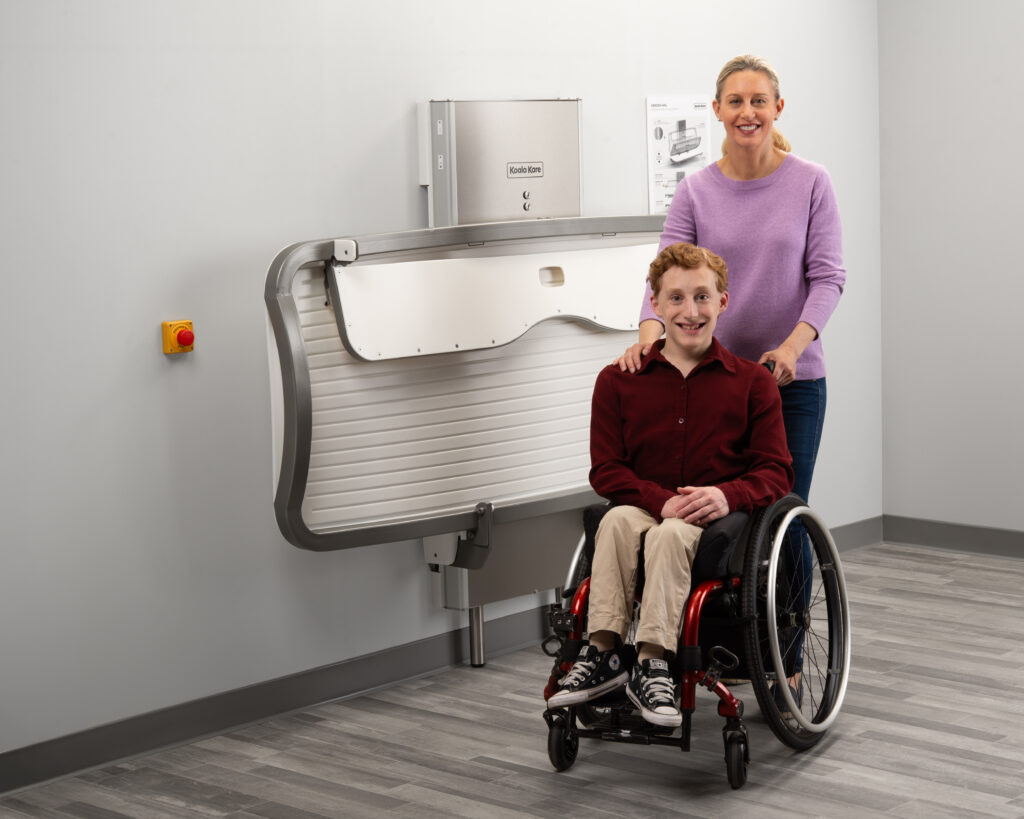

KB3000-AHL Adult Changing Station

Adult changing stations help make any type of building more accessible to people with disabilities in need of a different changing solution than a standard restroom. Whether for schools or universities, stadiums or arenas, airports, museums, zoos, rec centers, or any other type of environment, the durability and ease of use of the KB3000 is ideal for public buildings. Its contemporary design incorporates outstanding safety features, unmatched durability, and thoughtful considerations for the cared for and caregiver.

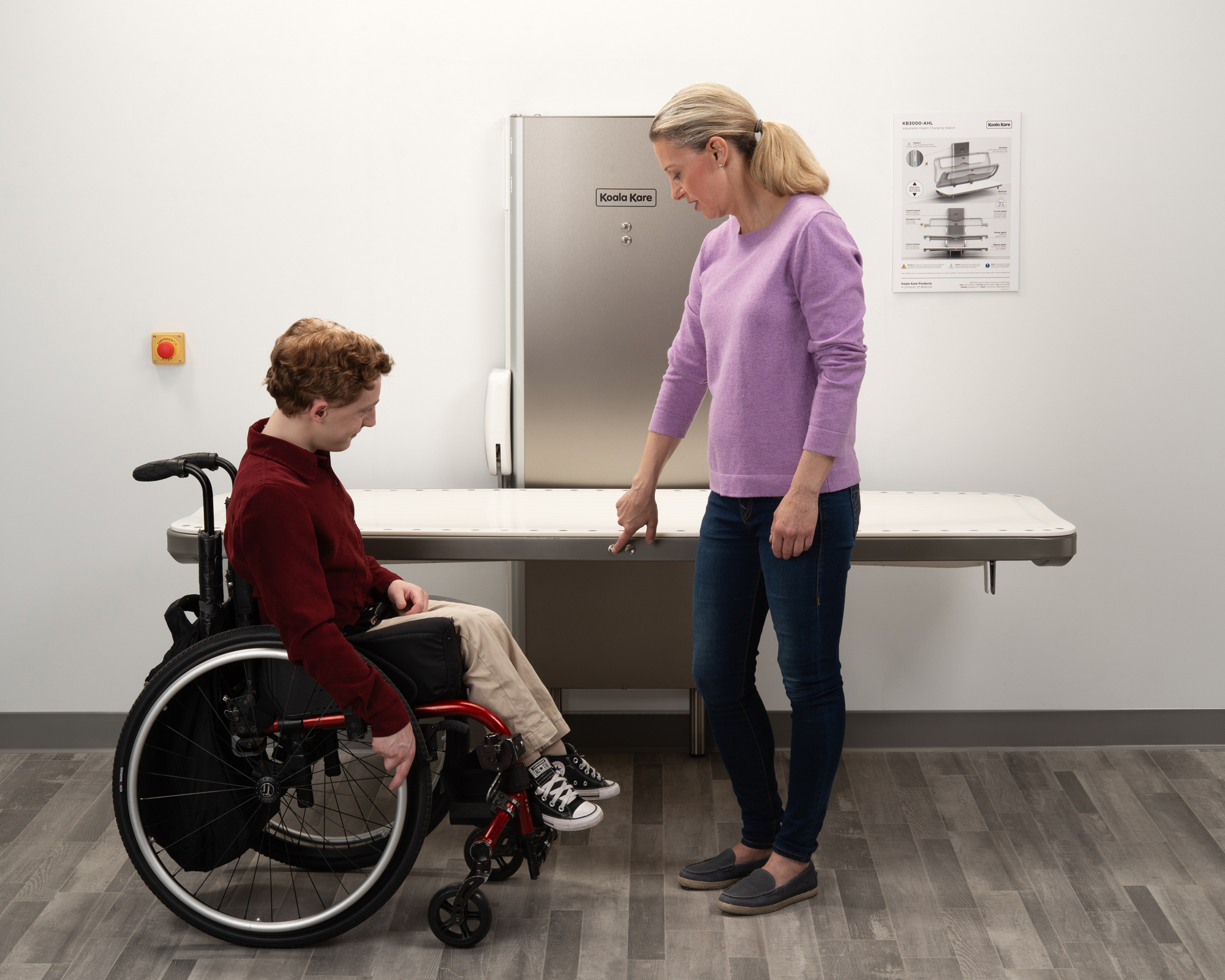

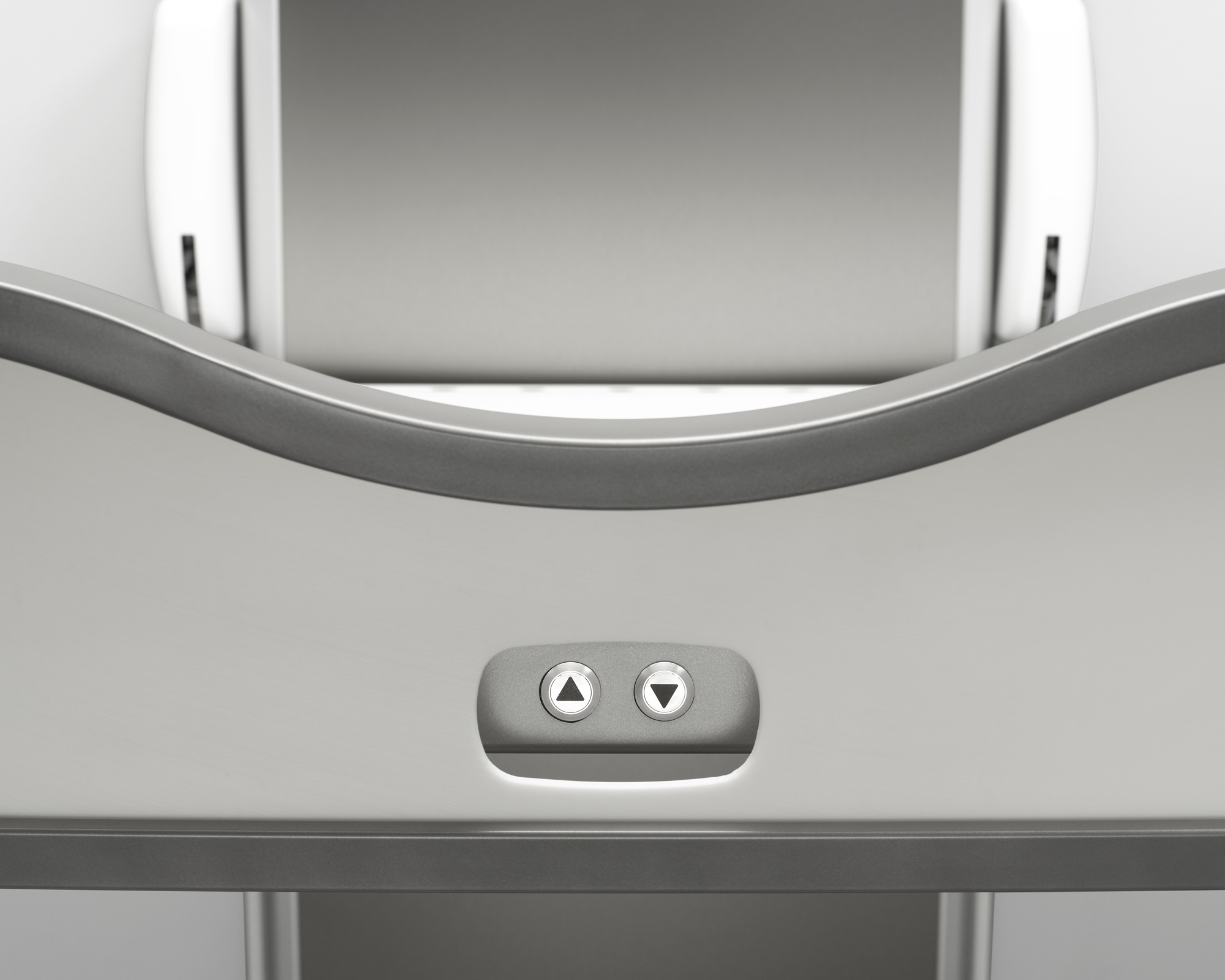

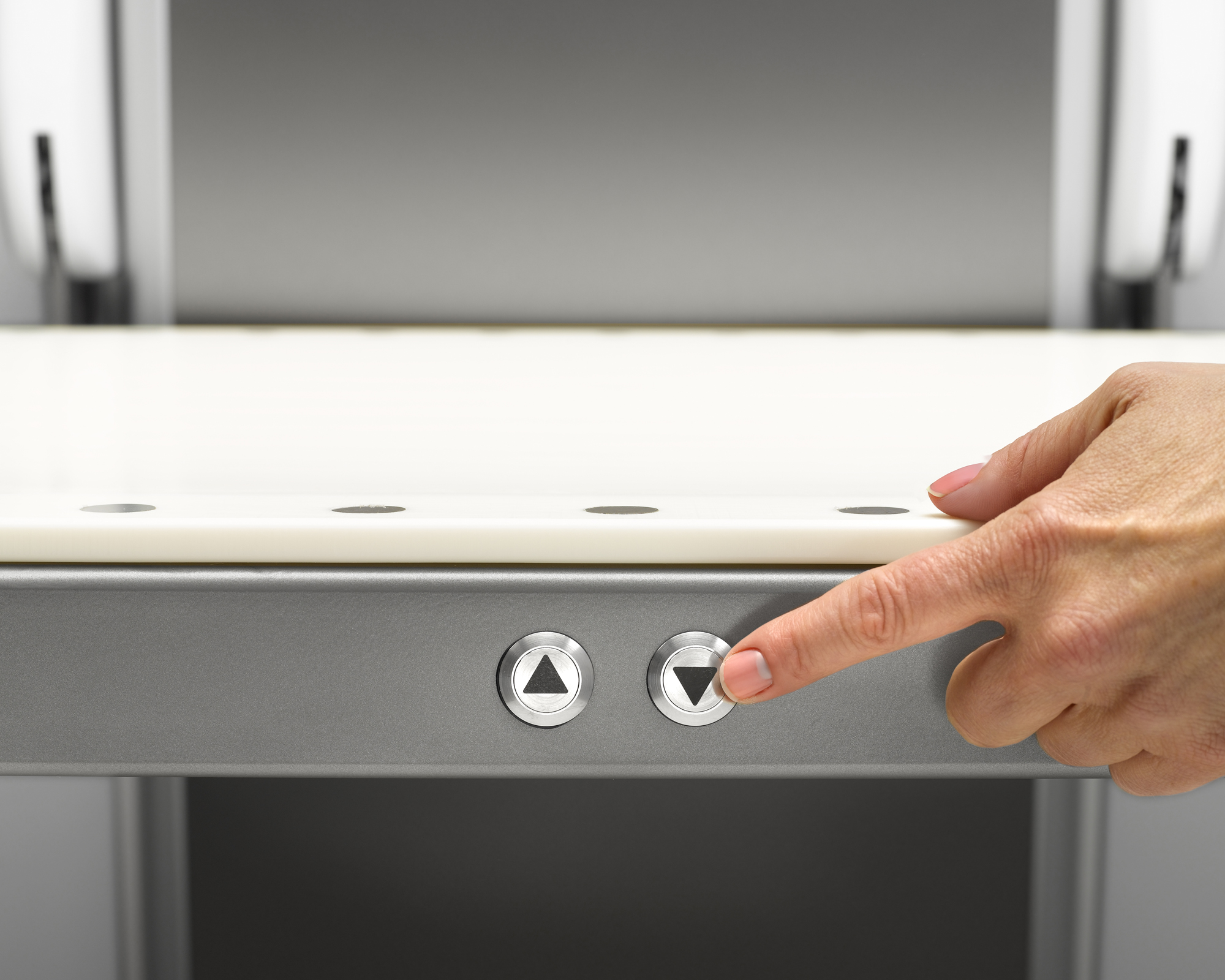

Height Adjustment: To enable safe transfer and use, the height of the changing surface adjusts from as low as 12” (30 cm.) to as high as 41” (104 cm.) from the floor. For easy access, sets of height adjustment buttons are located on the bed and the face of the wall cover. The curved dip in the changing surface guard allows for easier caregiver access.

For Adults and Adolescents: The KB3000 has been tested to support up to 500 lbs. (227 kg.) and has a large changing surface that is 75 ¼” long by 31 ½” wide (19.1 cm x 80 cm).

Safety: This UL compliant station has a built-in back-up battery to ensure continuous operation in the case of a power outage. A wall-mounted emergency stop button breaks power to actuator for additional safety.

Durability: Vandal-resistant changing surface and integrated recessed height controls are fabricated to withstand tampering. The plastic surface has an IX10 rating, which means it is resistant to high-impact and sharp objects. The changing surface frame is constructed with 2” powder coated, rust-free steel tubing and the IPX4 rating means the station can withstand significant exposure to water without damage to its electrical components. The unit also has no removable parts or exposed wires.

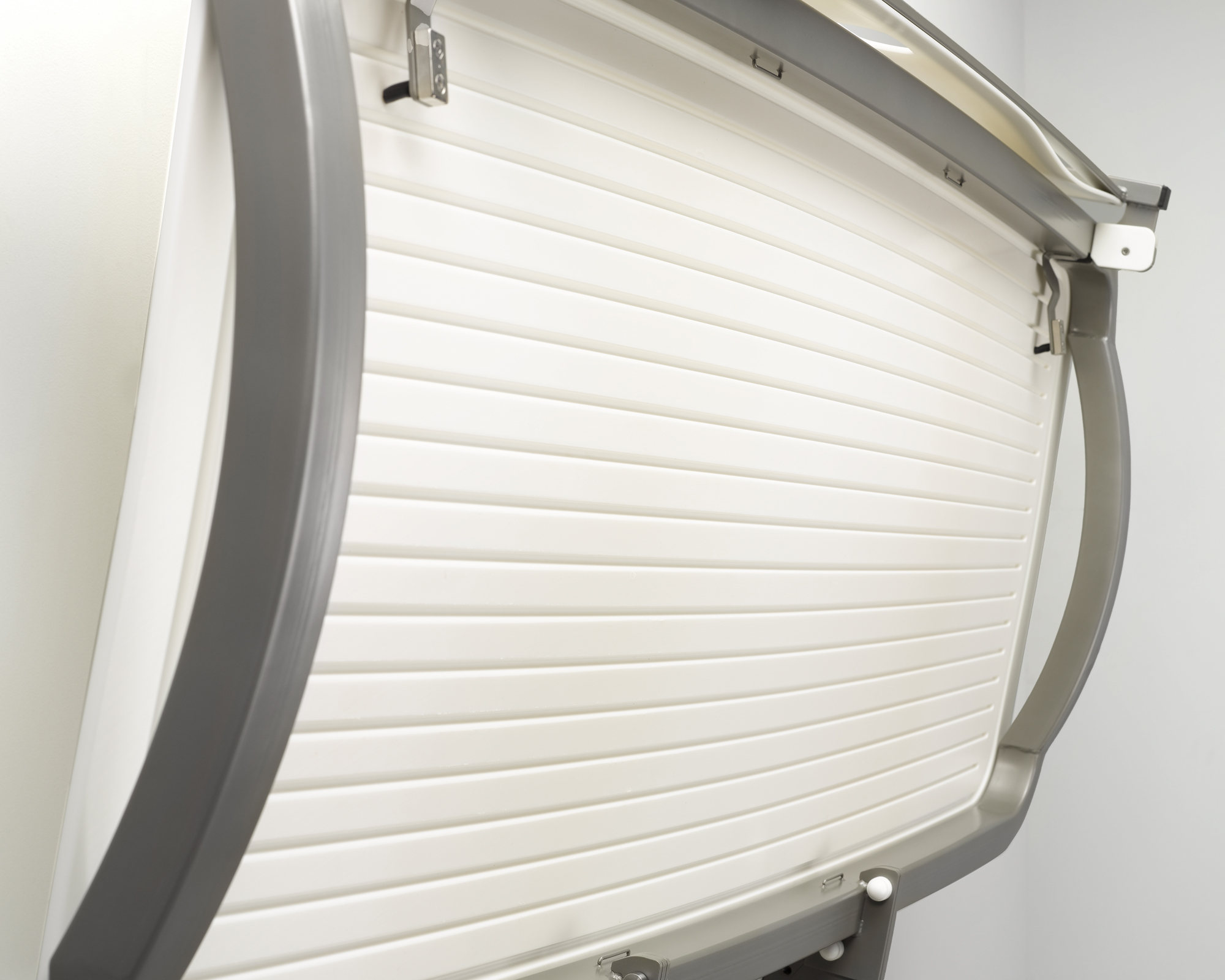

Maintenance: The smooth changing surface is made of polyethylene and can be easily wiped down and cleaned. It can also withstand being hosed down with water if needed. The crevice-free design prevents the buildup of contamination on the changing surface.

white-arrow-down

Technical Specifications

  • UL certified for US and Canada.
  • UL 962 & C22.2 No. 68
  • Full IEC 60601-1 certified including US, EU and Canadian differences
  • C22.2 No. 60601-1-14; ANSI/AAMI ES60601-1:2005, A1:2012, C1: 2009, A2:2021; EN 60601-1: 2006 + A2: 2021
  • Class 1 electrical system to protect against electrical shock.
  • IK10: High Impact Resistant
  • IPX4: Water Resistant
  • This product has been tested to support up to 500 lbs. (227 kg.) static load.
  • ISO 60601-1 and -2 medical and electrical devices whole product certification.

Unit Dimensions:

Changing Surface: 75.25″ L x 31.5″ W

Height Range: 12″ – 41″ (29″ range)

Safe Working Load: 500 lbs

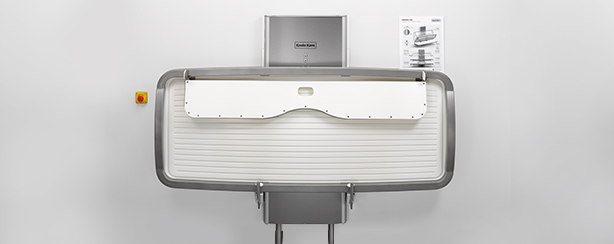

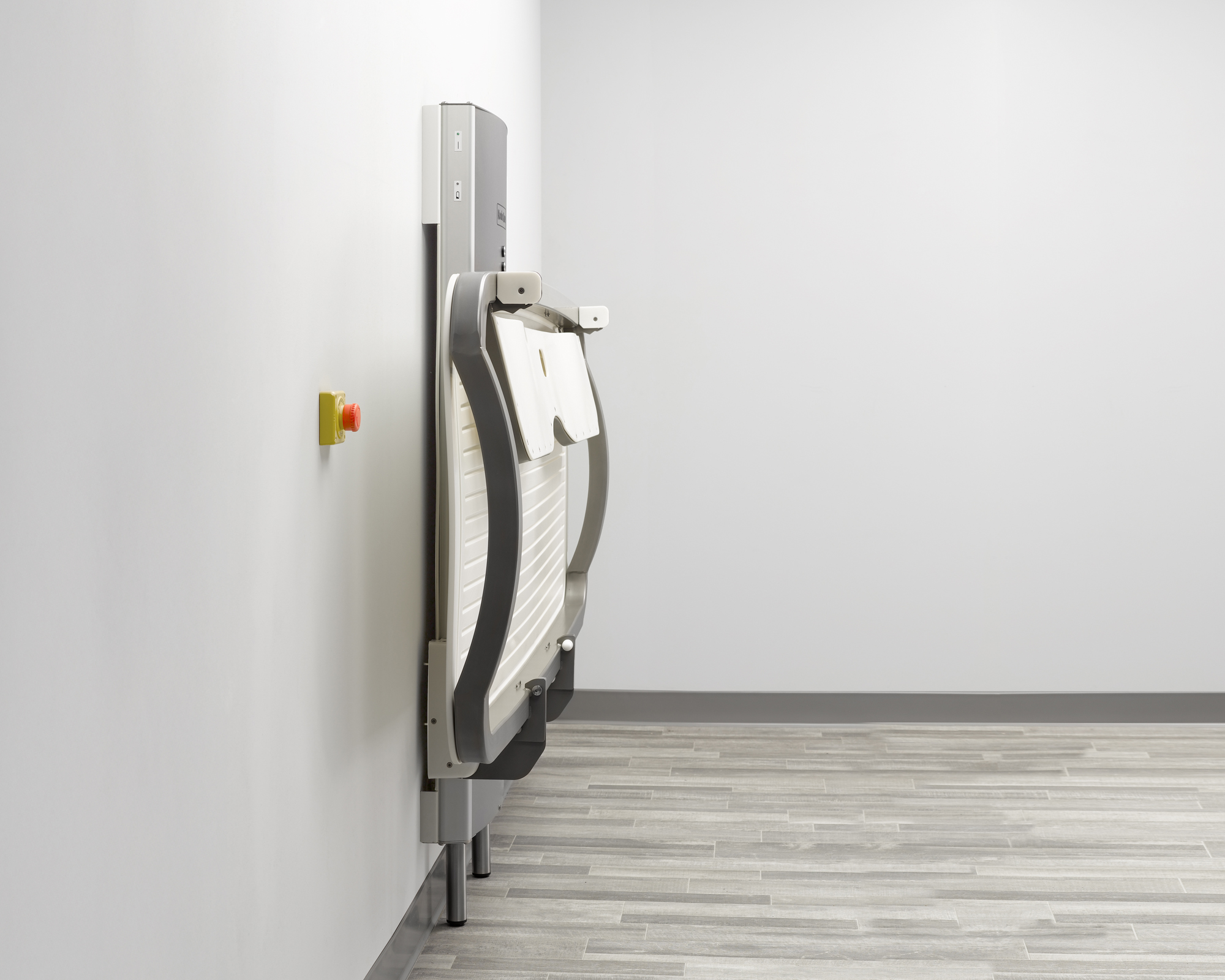

Closed Depth: 10″

white-arrow-down

Safety

  • Built-in back-up battery ensures operation during a power outage.
  • Equipped with two chains for safety redundancy during height adjustment.
  • Emergency stop feature can shut-off power in an emergency.
  • Unit has two sets of electronic controls located on face of wall cover and on the front of changing bed. Bed height adjusts from 12” (30 cm) to 41” (10.4 cm) from floor.
  • Front Safety Guard requires less than 5 lbs. of force and is a one-hand operation. The guard locks in raised position along front side of changing bed. The guard easily rotates and locks under changing bed in stored position.
white-arrow-down

Resources

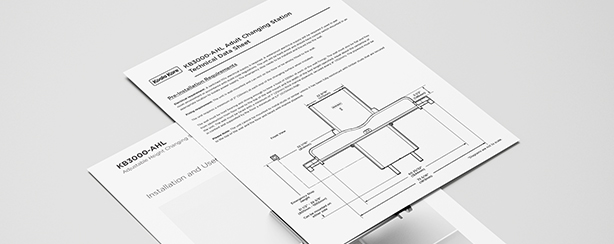

Architect Resources
