KB2600 Adult Changing Station

Adult changing stations help make public buildings more accessible to people with disabilities in need of a different changing solution than a standard restroom. Whether for healthcare, office buildings, houses of worship, small schools, the ease of use and safety of the KB2600 is ideal for many public buildings.

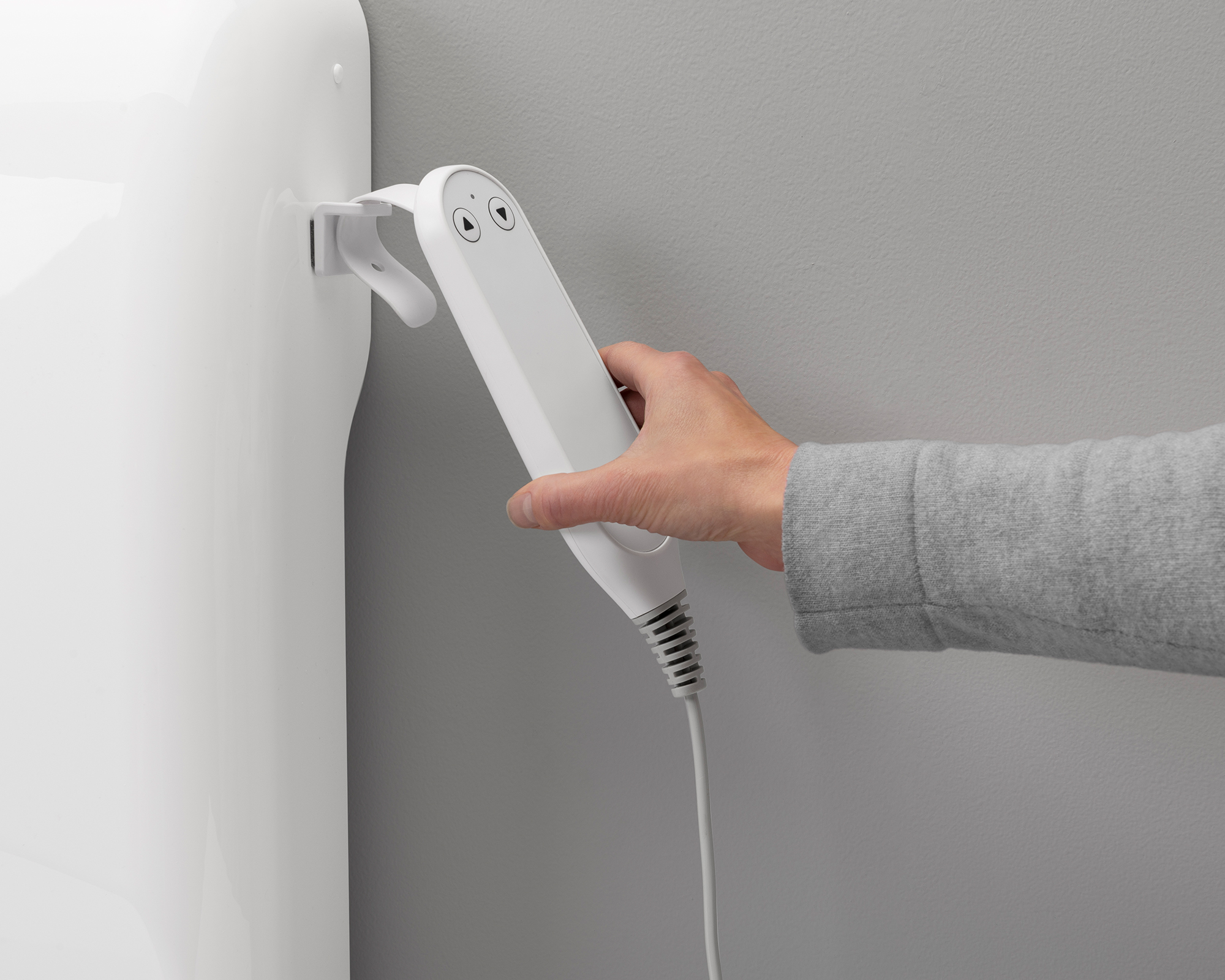

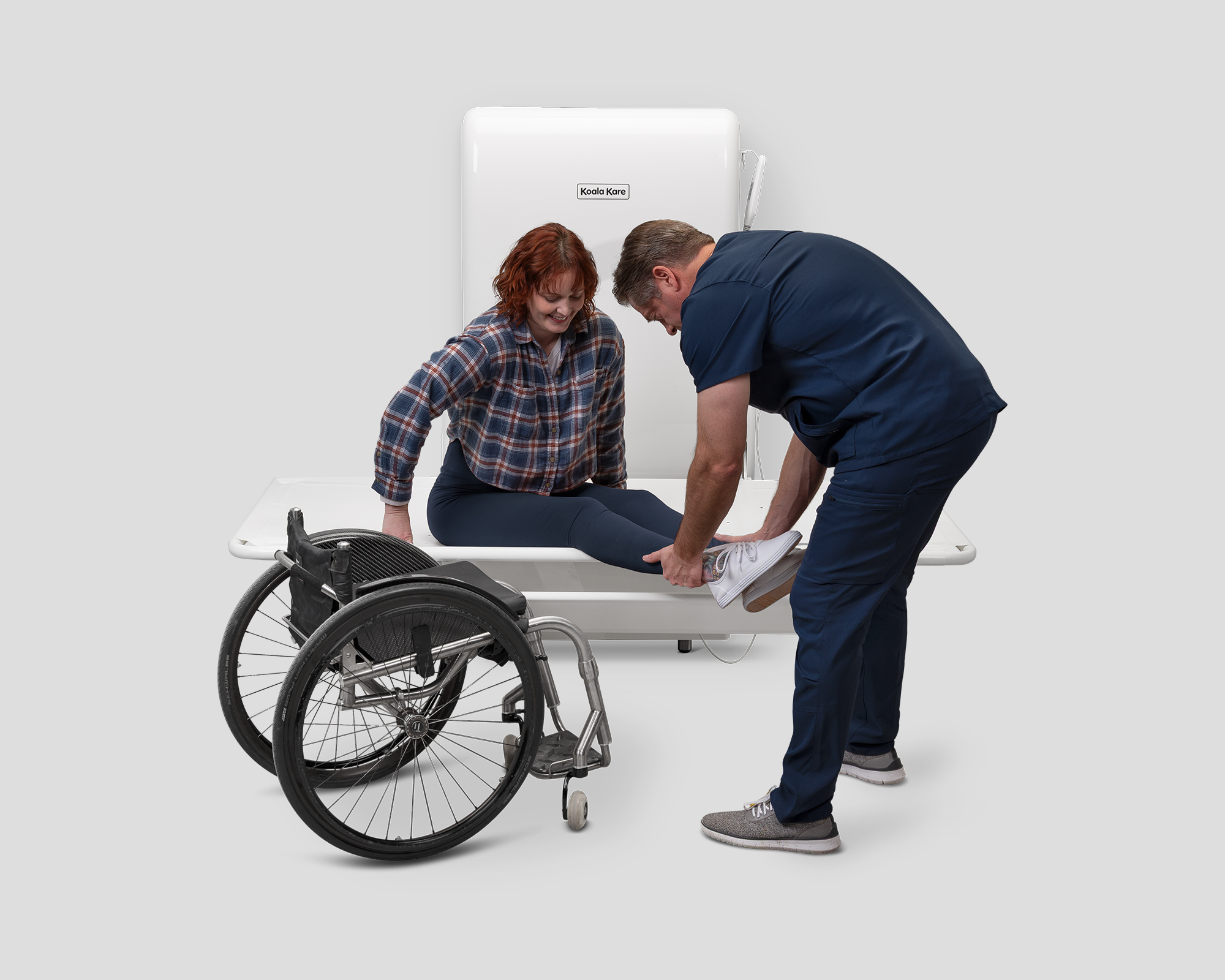

Powered Height Adjustment: To enable safe transfer and use, the height of the changing surface adjusts from as low as 13 11/16″ (350mm) to as high as 37 13/32″ (950mm) from the floor. The height is adjusted by using a handheld control.

For Adults and Adolescents: The KB2600 has been tested to support up to 440 lb. (200 kg.) and has a large changing surface that is 71″ wide by 31 1/2″ deep (1800mm x 800mm).

Safety: This station is UL compliant station and has a built-in back-up battery to ensure continuous operation in the case of a power outage. The KB2600 is IPX4 rated, meaning it can withstand significant exposure to water without damage to its electrical components.

Durability: Durable, non-rip, high tension vinyl stretcher with comfortable hammocking effect, integrated drainage for showering and hygienic wipeable surface. The frame is made of powder coated tubular steel.

Maintenance: The changing surface is made of smooth vinyl and can be easily wiped down and cleaned. It can also withstand being hosed down with water if needed.

white-arrow-down

Technical Specifications

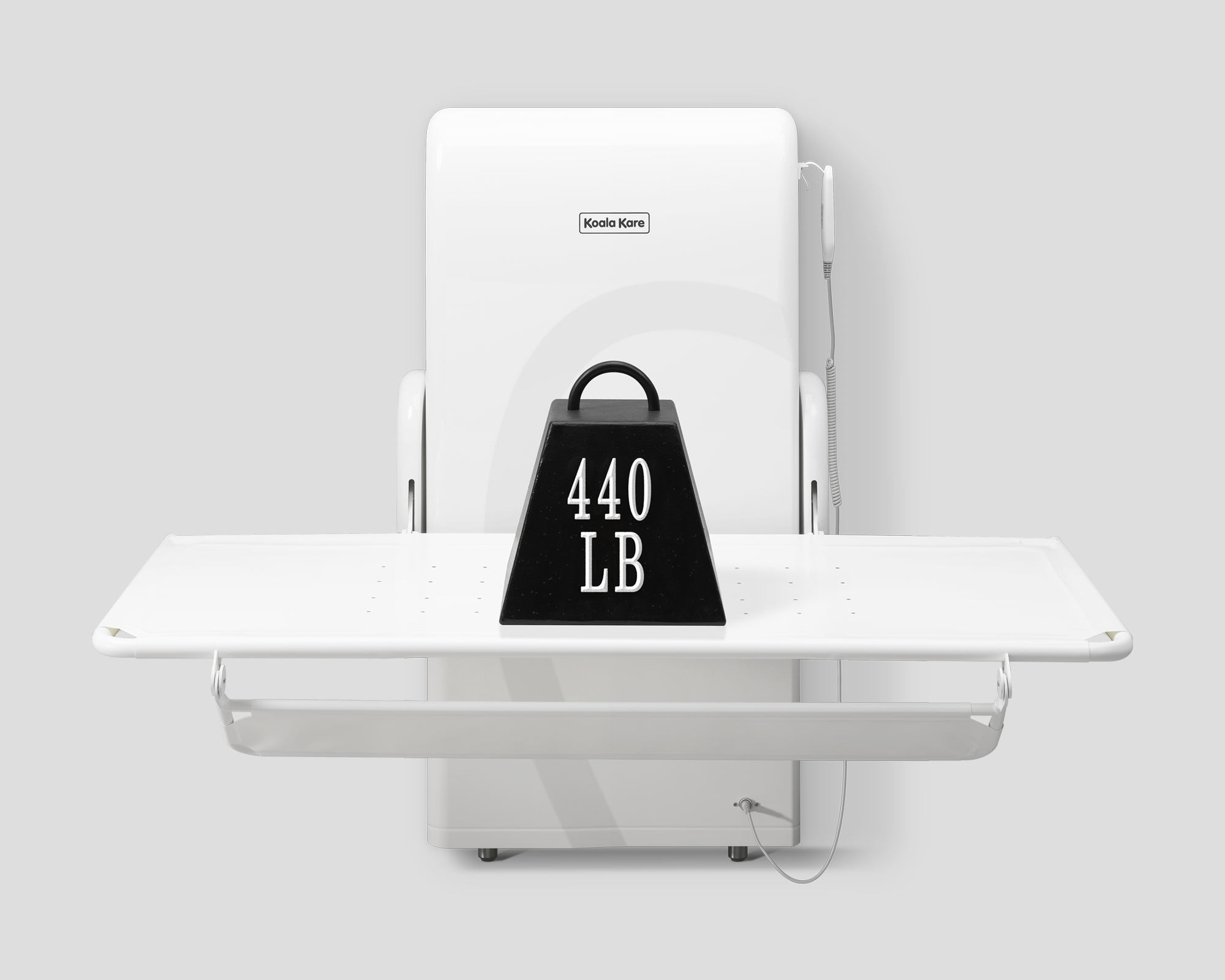

    • This product has been tested to support up to 440 lb. (200 kg.) static load.
    • UL certified for US and Canada.
    • UL 962 & C22.2 No. 68 certification.
    • Large changing surface that is 71″ (1800mm) wide, and 31 1/2″ (800mm) deep.
    • IK9: High Impact Resistant Cover
    • IPX4: Water Resistant
    • Changing surface is durable, non-rip, high tension, vinyl stretcher that is easy to clean.

Unit Dimensions:

Changing Surface: 71″ (1800 mm) W x 31 1/2″ (800mm) D
Height Adjustment Range: 14″ (350mm) to 37″ (950mm) from floor
Safe Working Load: 440 lb. (220 kg.)

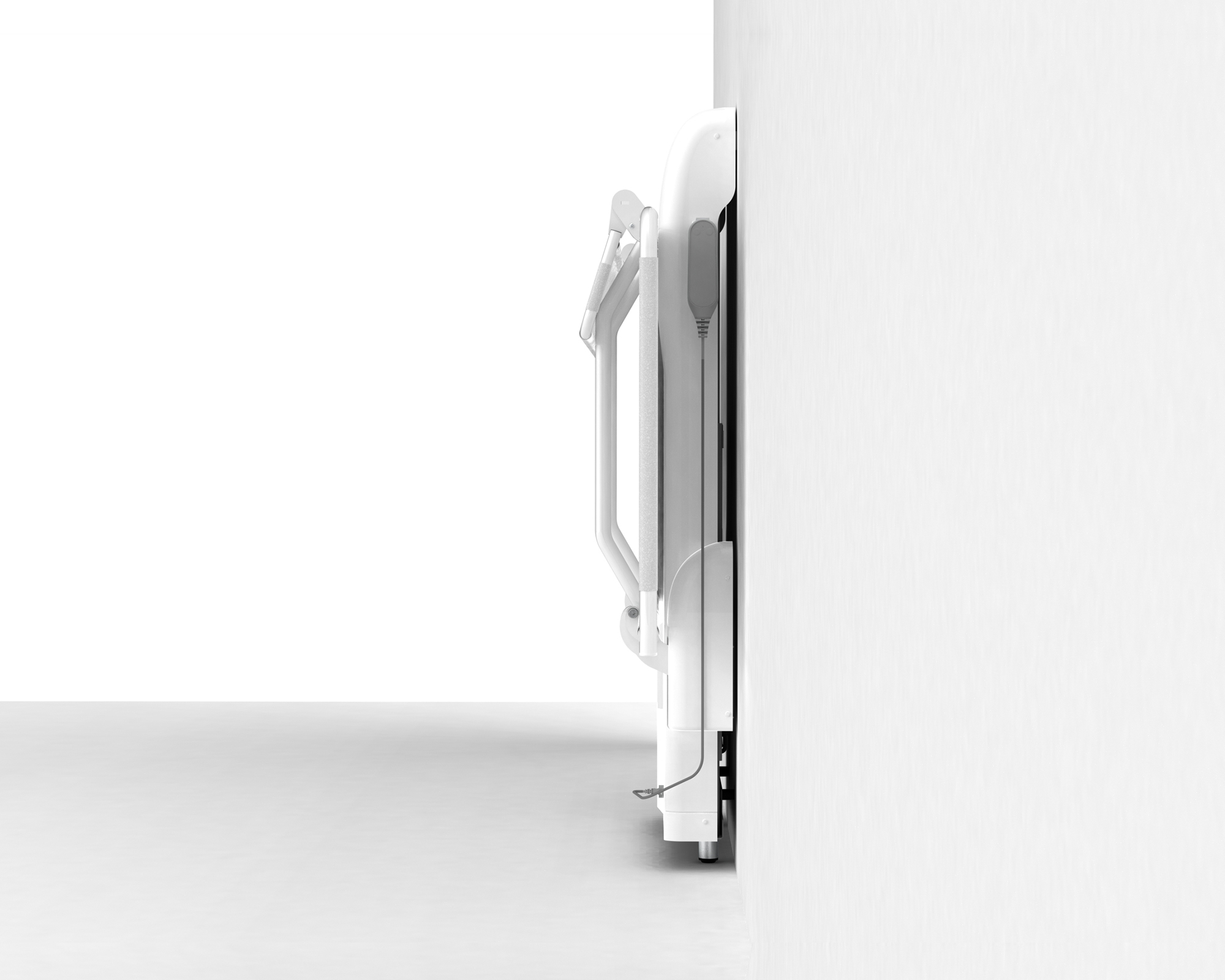

Closed Depth from Wall: 13″ (330mm)

white-arrow-down

Safety

  • Built-in back-up battery ensures operation during a power outage.
  • Electronically adjusts from 13 11/16″ (350mm) to as high as 37 13/32″ (950mm) from the floor.

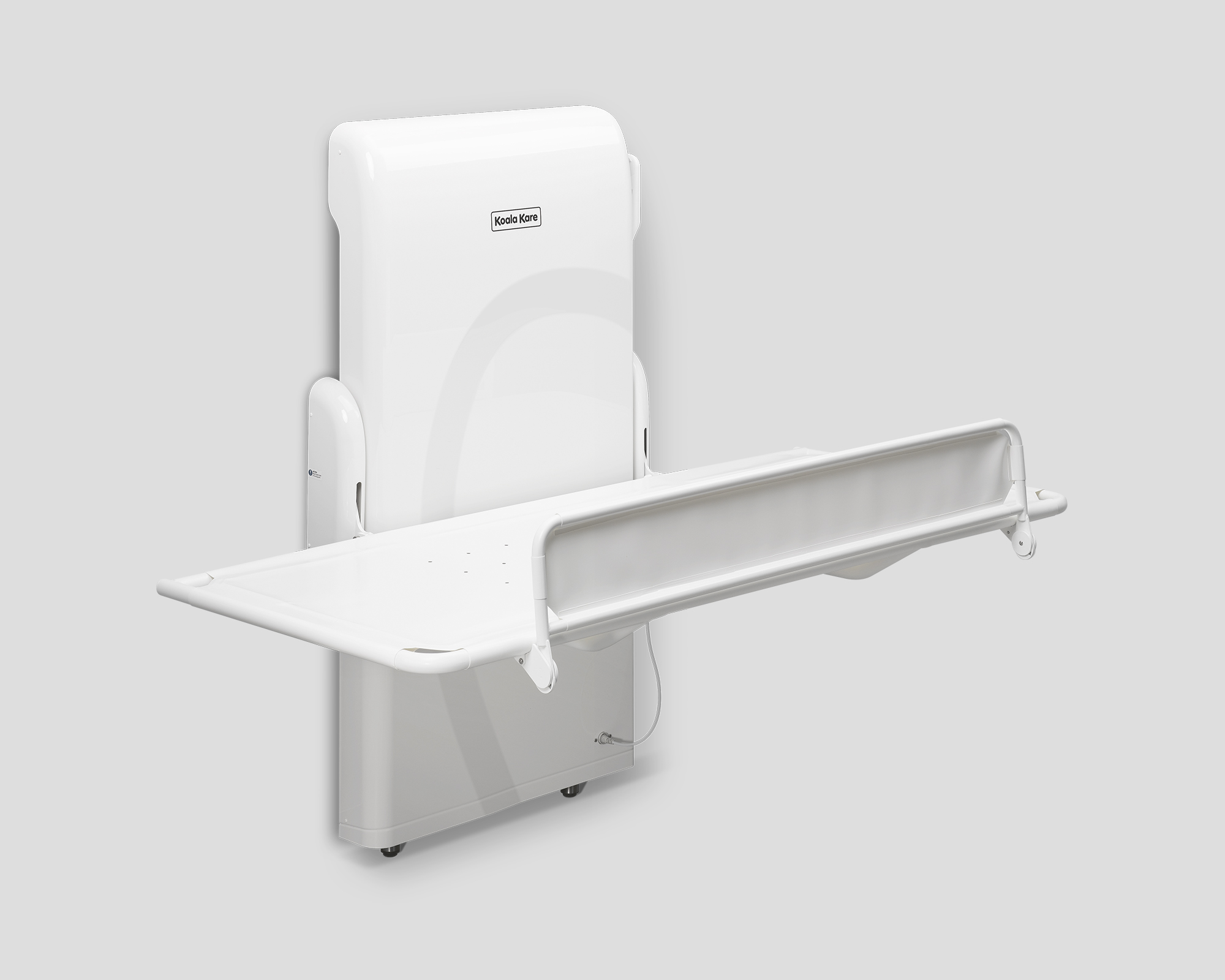

  • Front Safety Guard requires less than 5 lb. of force to operate with one-hand operation. The guard locks in raised position along front side of changing bed. The guard easily rotates and locks under changing bed in stored position.
  • Class 1 electrical system to protect against electrical shock.
  • Suitable for use in shower areas and wet rooms.
white-arrow-down

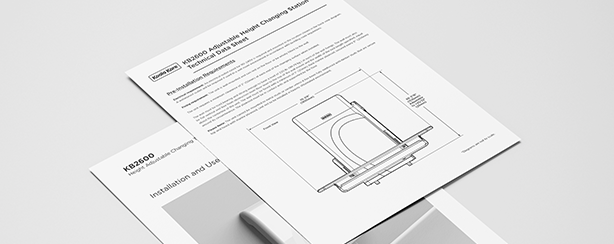

Resources
