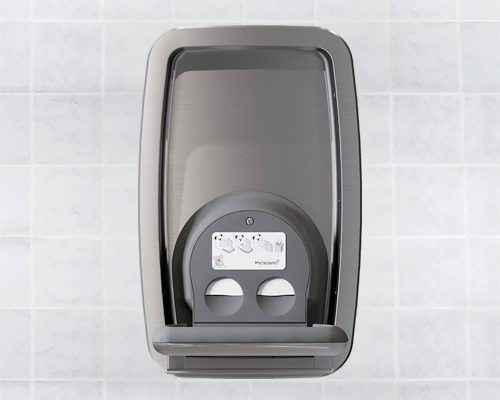

KB311-SSRE Vertical Stainless Steel Recessed-Mounted

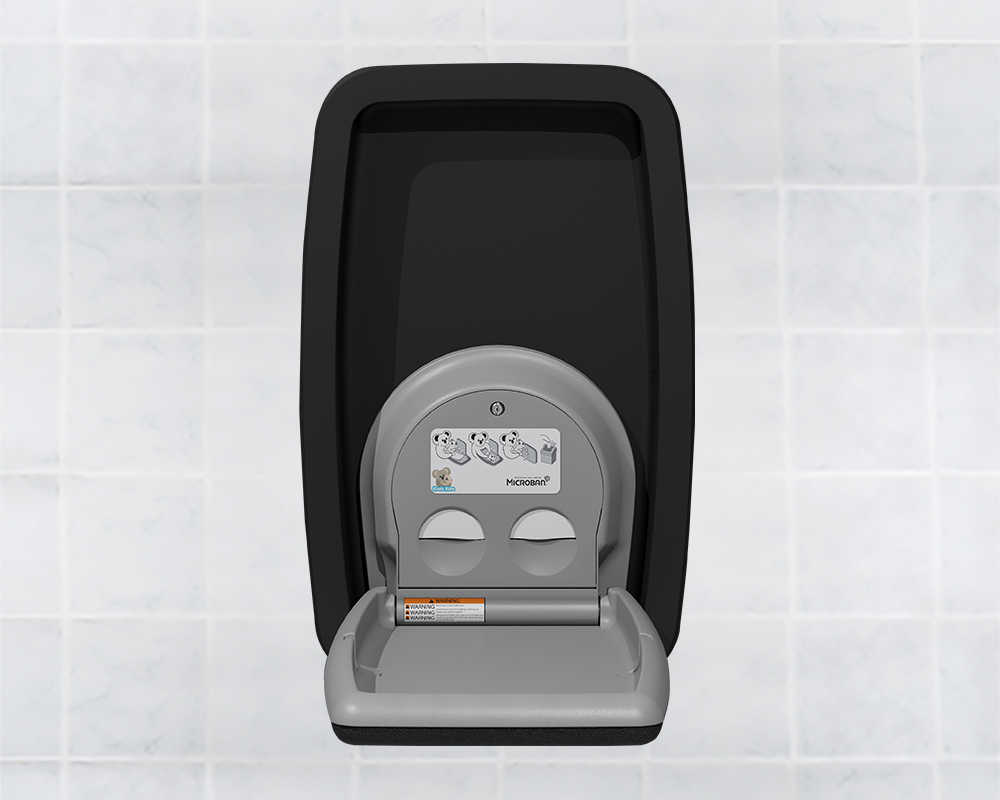

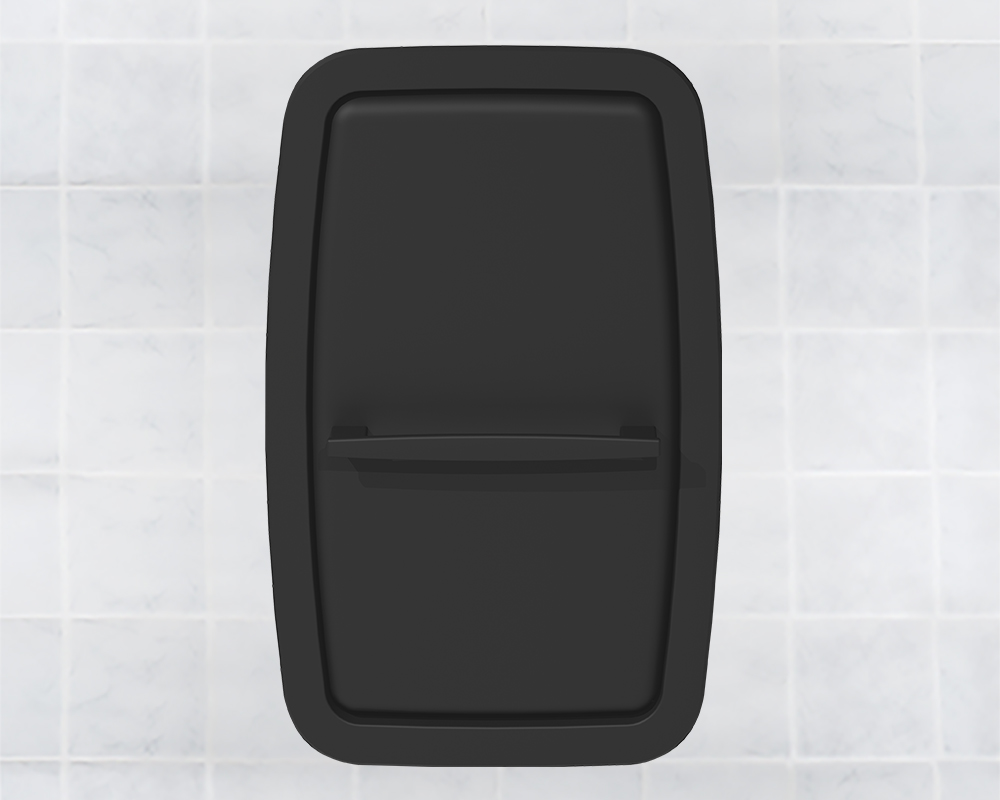

Recessed-mounted vertical baby changing station that features one-piece, deep-drawn, uniform grain stainless steel exterior. This construction eliminates seams, sharp edges, and weld lines to form a modern aesthetic that helps upgrade the look of any washroom. Also available in a Black Matte finish (KB311-SSRE-MBLK).

Key product features include ADA and ASTM compliance, laser etched logo, and an easy to load and use dual-cavity dispenser for sanitary bed liners and diaper disposal bags. The KB311 comes with a wall-mounted, stainless steel bag hook to make accessing diaper bags easier and safer.

The polypropylene bed surface contains exclusive Microban® antimicrobial product protection, which reduces odor-causing bacteria between cleanings.

Colors

Stainless Steel

Matte Black

Technical Specifications

This Baby Changing Station has been tested to support 200 lbs with minimal deflection.

Please note: This product is designed for infants only, up to 3.5 years of age and weighing less than 50 lbs.

ASTM and EN compliant. Meets ADA requirements when mounted properly.

US Patent Nos. 8365328, 8276229, D605886, D601843

Canadian Patent No. 130179

European Community 1114367-0001, 1114367-0002

Australia Patent No. 325470

China Patent No. ZL200930004164.1

Taiwan Patent No. D136662

Unit Dimensions: 26 7/32” W x 41 5/16″ H (666 mm x 1050 mm)

Depth (closed): 2 23/32” (69 mm)

Extension (open): 32 27/32”(834 mm)

Shipping Weight: 73 lbs

ADA Compliance Information

KB311 Baby Changing Stations have been designed to meet the applicable provisions of the 2010 ADA Standards (ADAS) and the 2009/2017 International Code Council (ICC) A117.1 Standards when properly installed and maintained. To comply with these accessibility requirements the unit must be installed in a compliant location and height in accordance with the installation instructions.

For more information, download the Accessibility Compliance Guide.
